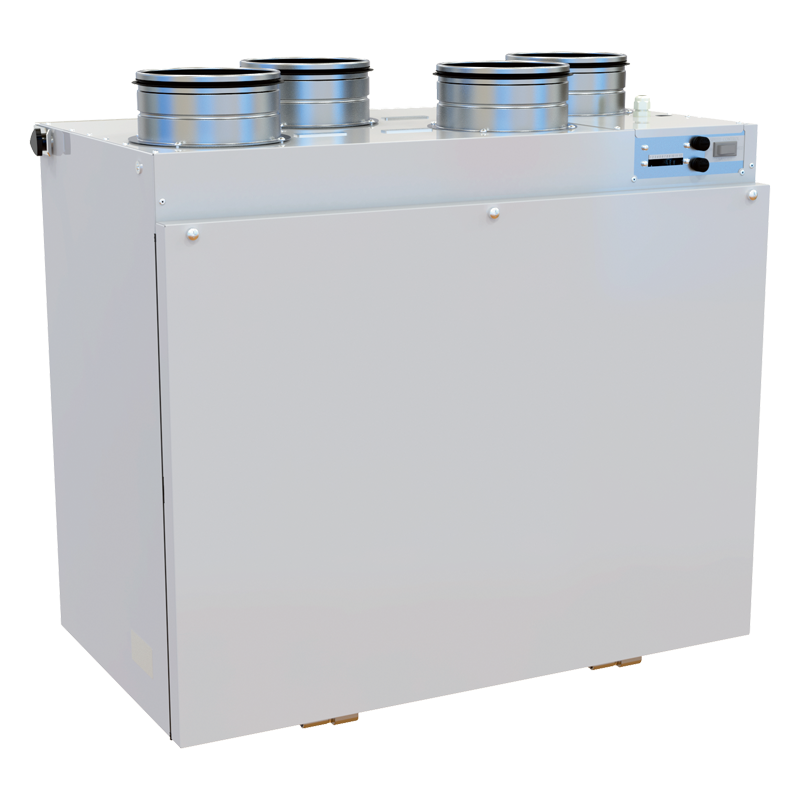

Vents Brig ERV 200 R PR EC M

Name: Vents Brig ERV 200 R PR EC M
Brand: VENTS
Availability: InStock

Vents Brig ERV 200 R PR EC M - The complete whole house ventilation system designed to bring a continuous supply of fresh air into the house while exhausting an equal amount of stale air.

Coming soon

The complete whole house ventilation system designed to bring a continuous supply of fresh air into the house while exhausting an equal amount of stale air.

Heat exchanger type: Counter flow
Extract filter: MERV 5
Supply filter: MERV 5 (optional MERV 13)
Motor type: EC
Enthalpy heat exchanger
Control: Built-in control panel
Casing material: Aluzinc
SRE: 77 %
ASRE: 79 %

Description
Downloads
Dimensions

	Unit of measurement	Brig ERV 200 R PR EC M
Connected air duct size	in	6 1/8
Minimum supply voltage	V	120
Maximum supply voltage	V	120
Power supply frequency	Hz	60
Maximum performance @0.1"	CFM	280
Heat exchanger type	-	Counter flow
Heat exchanger material	-	Enthalpy
Extract filter	-	MERV 5
Supply filter	-	MERV 5 (optional MERV 13)
Airflow @ 0.4" WG	CFM	256
SRE	%	77
ASRE	%	79

Create PDF

Datasheet

HRV & ERV catalog 2025-06

5.45 Mb

Datasheet

Brig ERV 200 R PR EC specification 2025-02

546 Kb


Brig ERV 200 R PR EC M - image 1

414 Kb

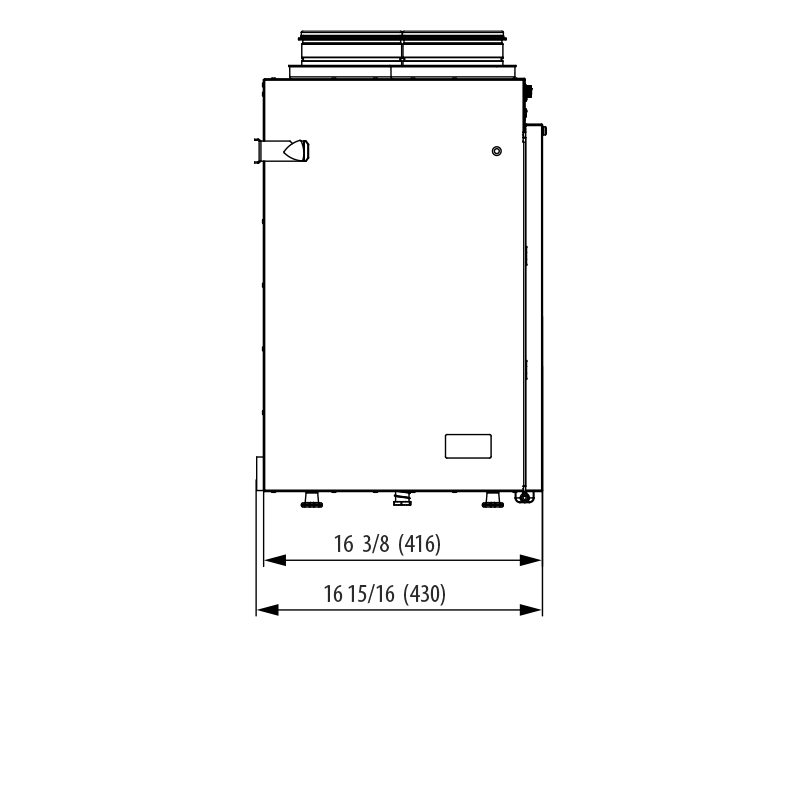

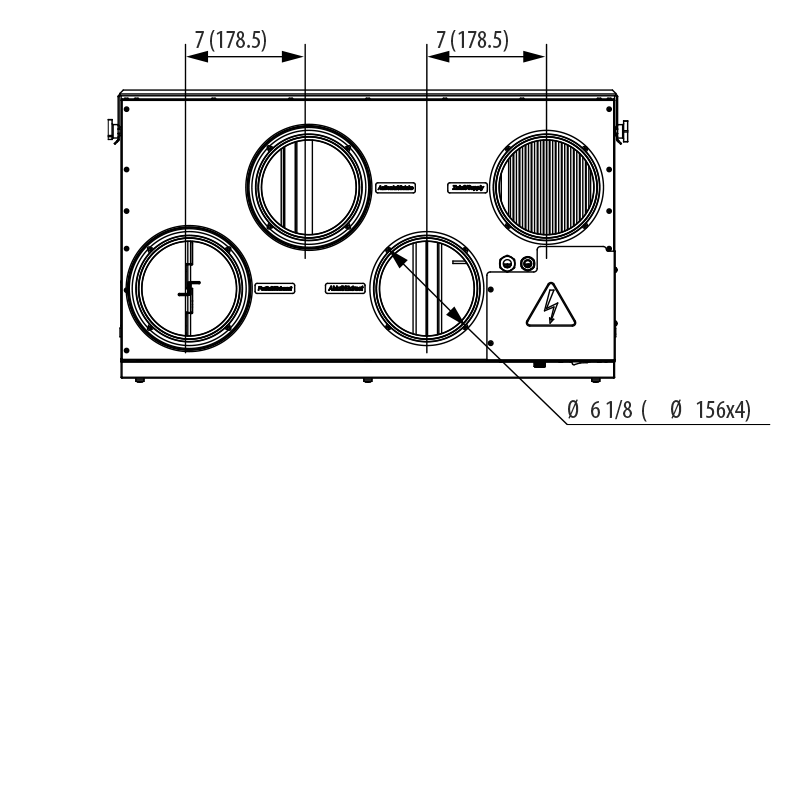

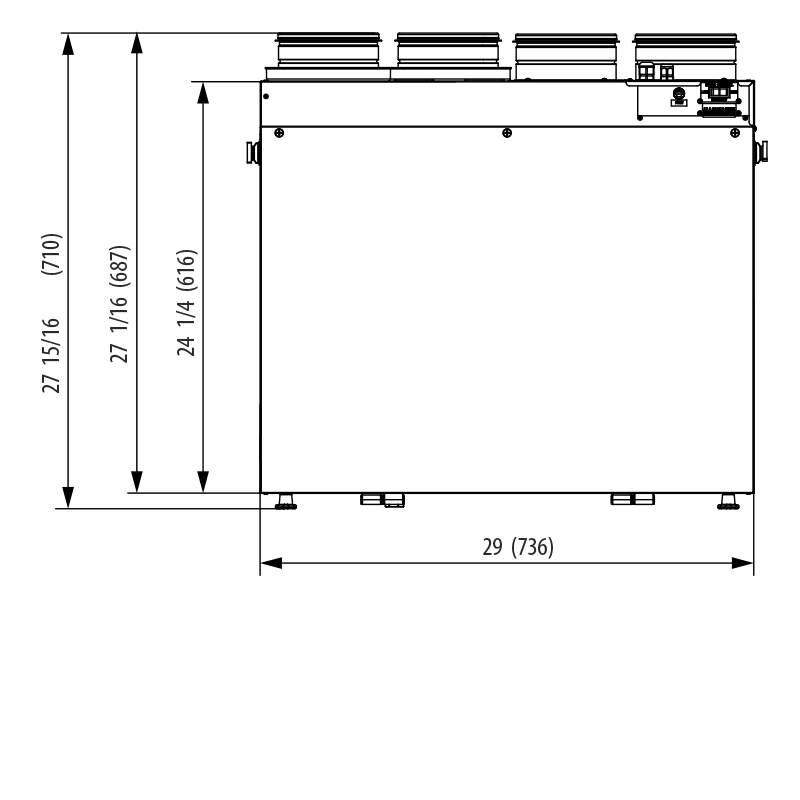

Vents Brig ERV 200 R PR EC M - Dimensions
