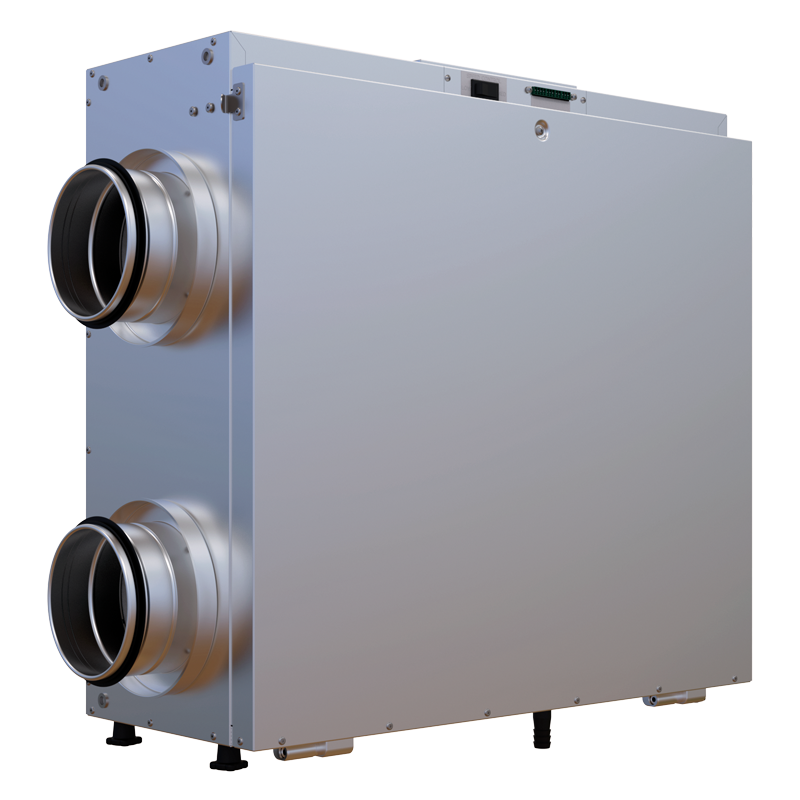

Vents Frigate ERV 130 PR EC

Name: Vents Frigate ERV 130 PR EC
Brand: VENTS
Availability: InStock

Vents Frigate ERV 130 PR EC - The complete whole house ventilation system designed to bring a continuous supply of fresh air into the house while exhausting an equal amount of stale air.

Coming soon

The complete whole house ventilation system designed to bring a continuous supply of fresh air into the house while exhausting an equal amount of stale air.

Heat exchanger type: Counter flow
Extract filter: MERV 5
Supply filter: MERV 5 (optional MERV 13)
Motor type: EC
Enthalpy heat exchanger
SRE: 76 %
ASRE: 78 %

Description
Downloads
Dimensions

	Unit of measurement	Frigate ERV 130 PR EC
Connected air duct size	in	4 7/8
Minimum supply voltage	V	120
Maximum supply voltage	V	120
Power supply frequency	Hz	60
Maximum performance @0.2"	CFM	132
Heat exchanger type	-	Counter flow
Heat exchanger material	-	Enthalpy
Extract filter	-	MERV 5
Supply filter	-	MERV 5 (optional MERV 13)
Airflow @ 0.4" WG	CFM	125
SRE	%	76
ASRE	%	78

Create PDF

Datasheet

HRV & ERV catalog 2025-06

5.45 Mb

Datasheet

Frigate ERV 130 PR EC specification 2025-02

506 Kb


Frigate ERV 130 PR EC - image 1

480 Kb

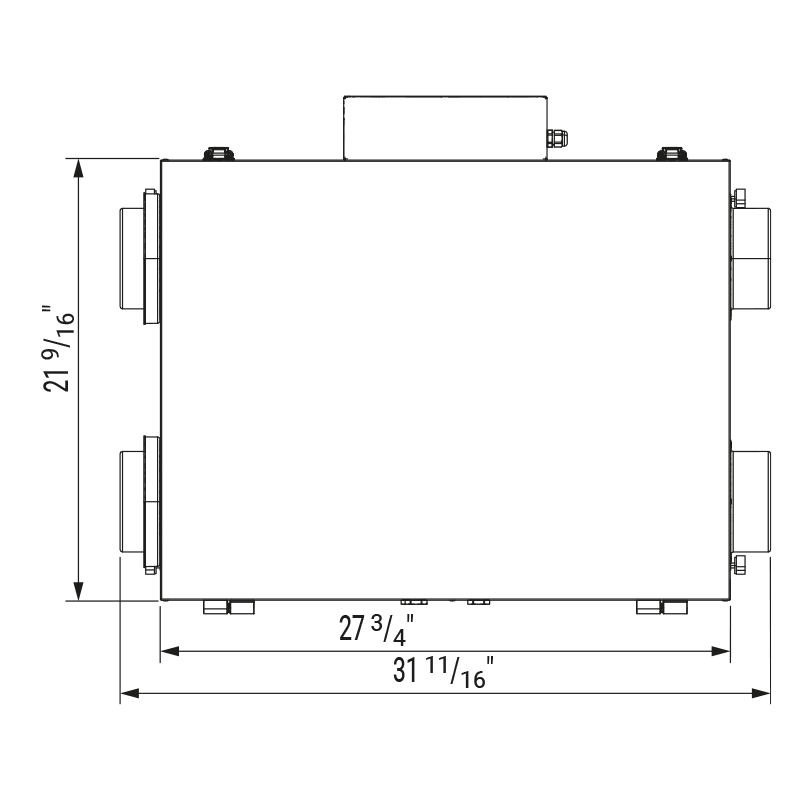

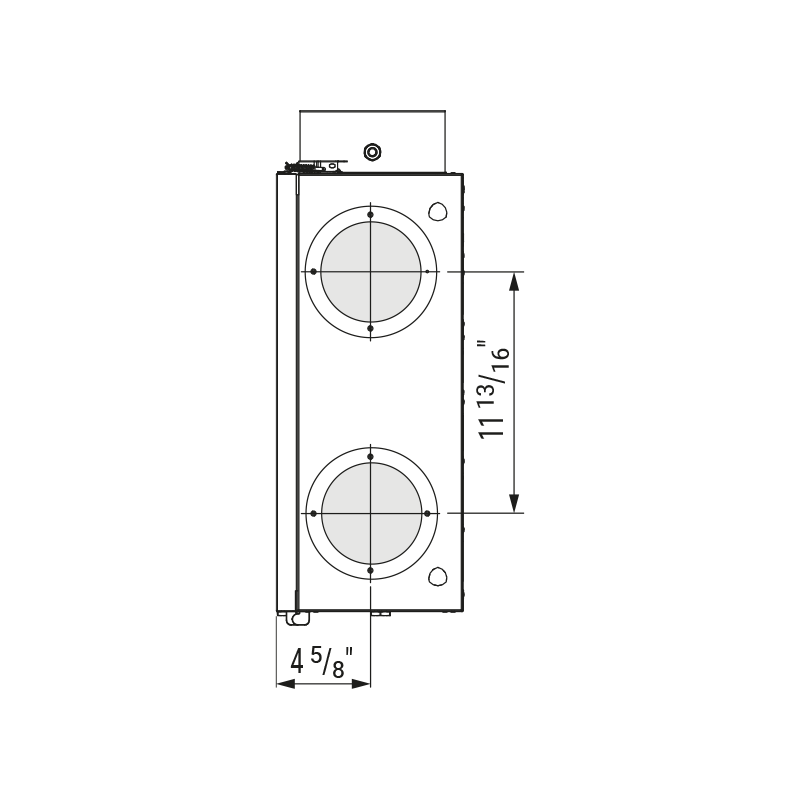

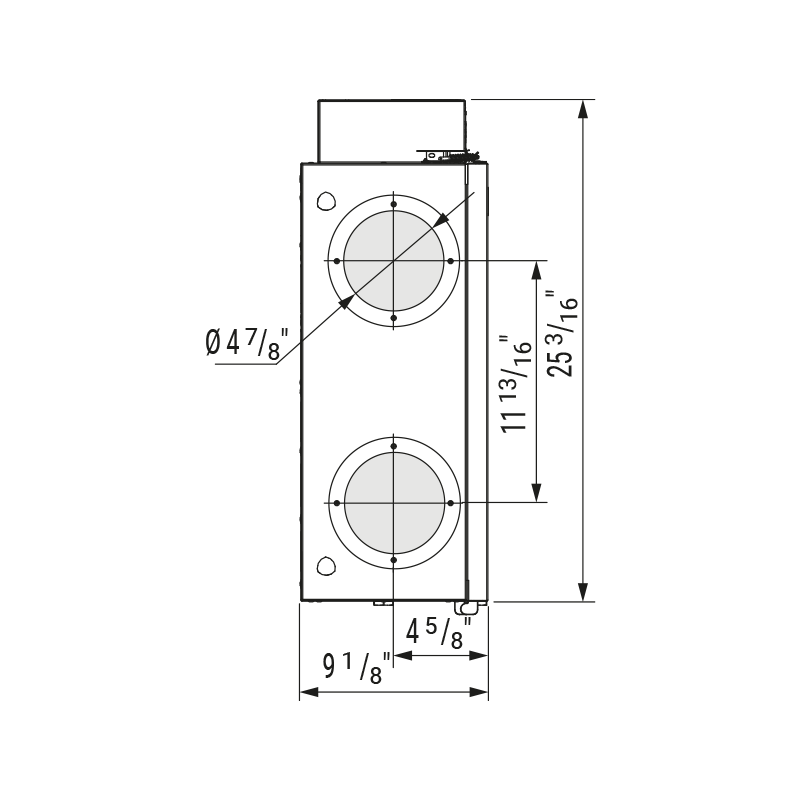

Vents Frigate ERV 130 PR EC - Dimensions
