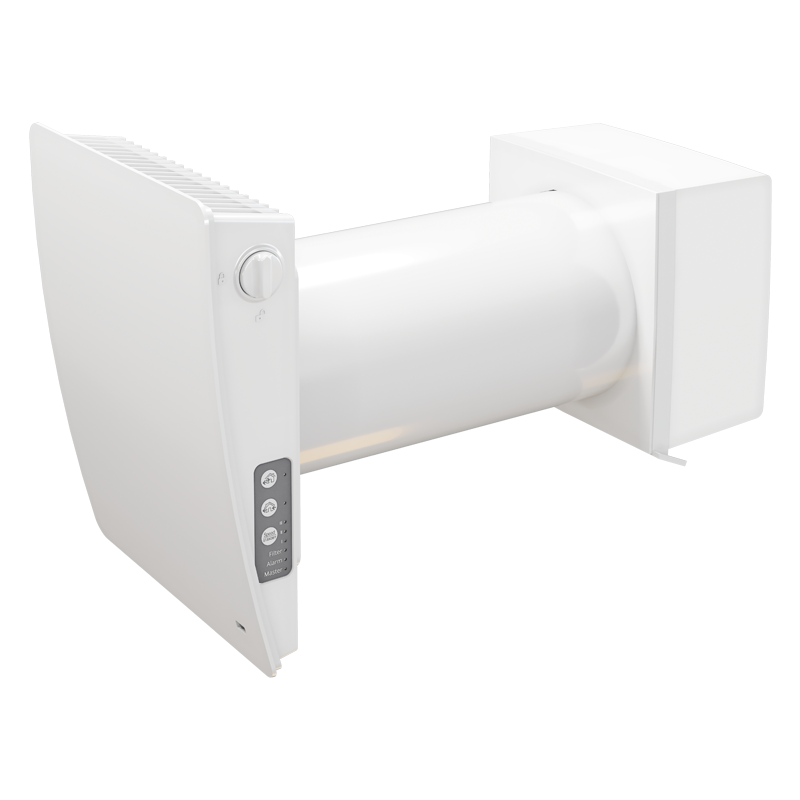

| Unit of measurement | TwinFresh LuxAir | |||
| Speed | - | 1 | 2 | 3 |

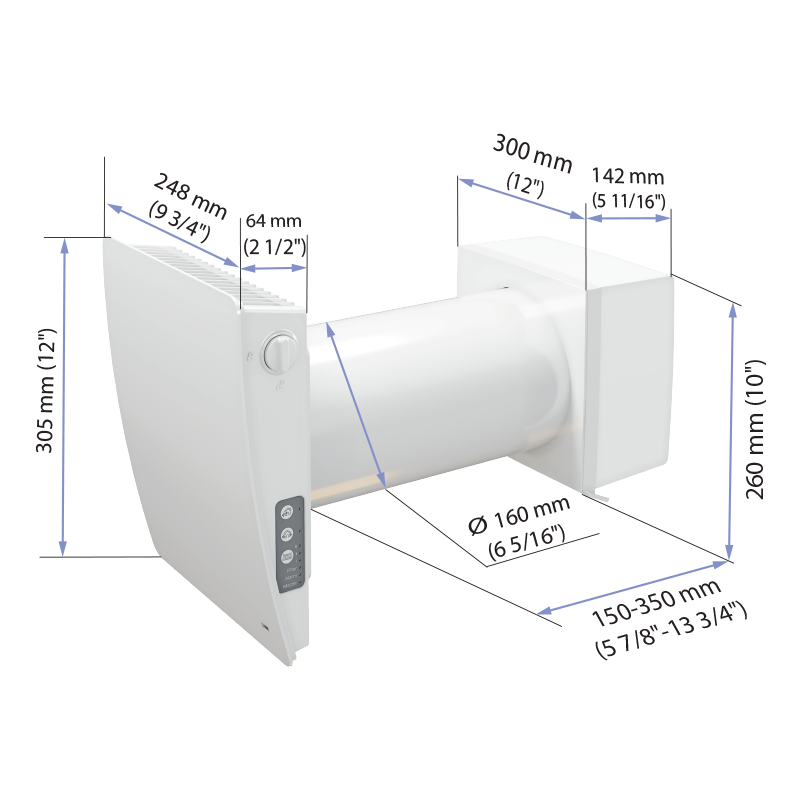

| Connected air duct size | in | 6 5/16” | ||
| Maximum supply voltage | V | 240 | ||
| Minimum supply voltage | V | 100 | ||
| Power supply frequency | Hz | 50/60 | ||
| Rated power | W | 1.8 | 2.5 | 4.9 |
| Maximum unit current | A | 0.06 | 0.07 | 0.11 |
| Air flow in ventilation mode | CFM | 9 | 18 | 29 |
| Air flow in heat recovery mode | CFM | 4 | 9 | 15 |
| Rotation speed at 60hz | - | 800 | 1300 | 1900 |
| Sound level | Sones | 0.3 | 0.4 | 0.5 |
| Heat recovery efficiency | % | ≤ 88 | ||
| Heat exchanger type | - | Regenerative | ||
| Heat exchanger material | - | Ceramic | ||
| Filter | - | MERV 8 (MERV 13 optional) | ||
| Ingress protection rating | - | IP24 | ||
| Minimum wall thickness | in | 5 7/8” | ||
| Maximum wall thickness | in | 13 3/4” | ||
| Name | Photo | Description |
|---|---|---|

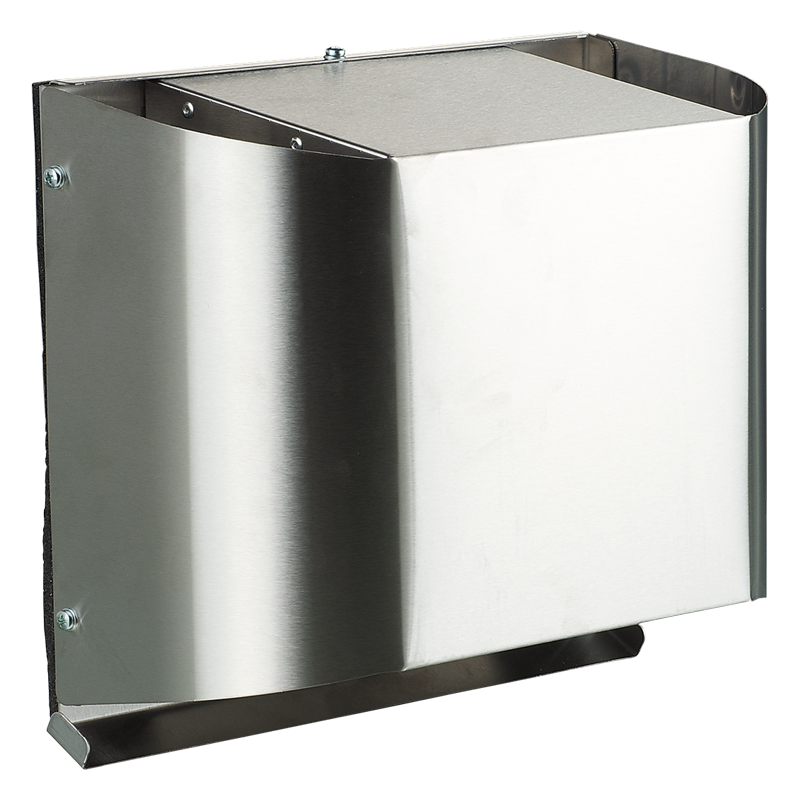

| Vents EH-2 chrome 160 |
|
Steel outer hood for thin walls |

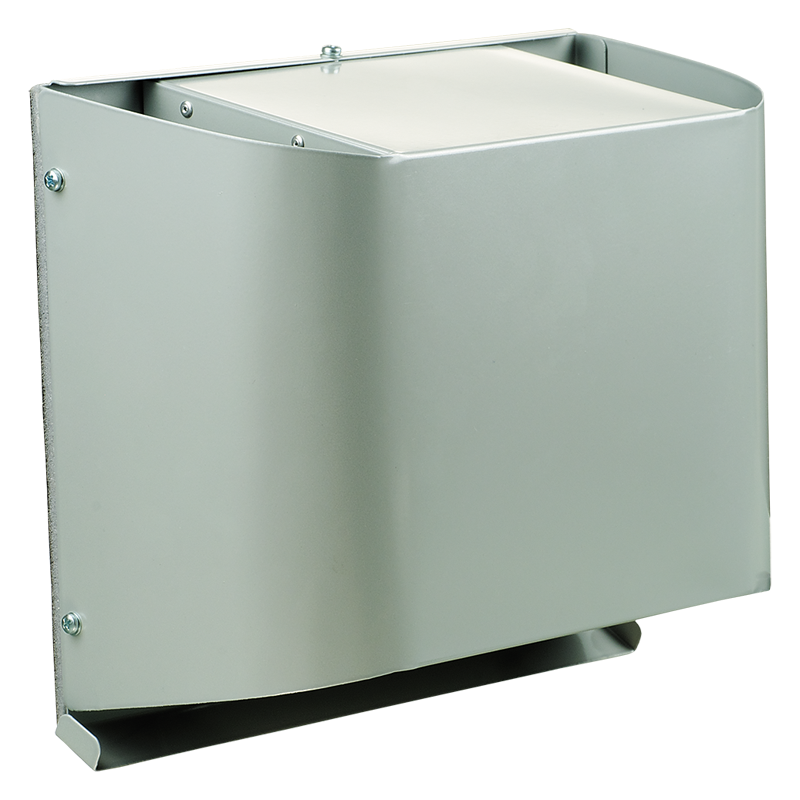

| Vents EH-2 grey 160 |
|
Steel outer hood for thin walls |

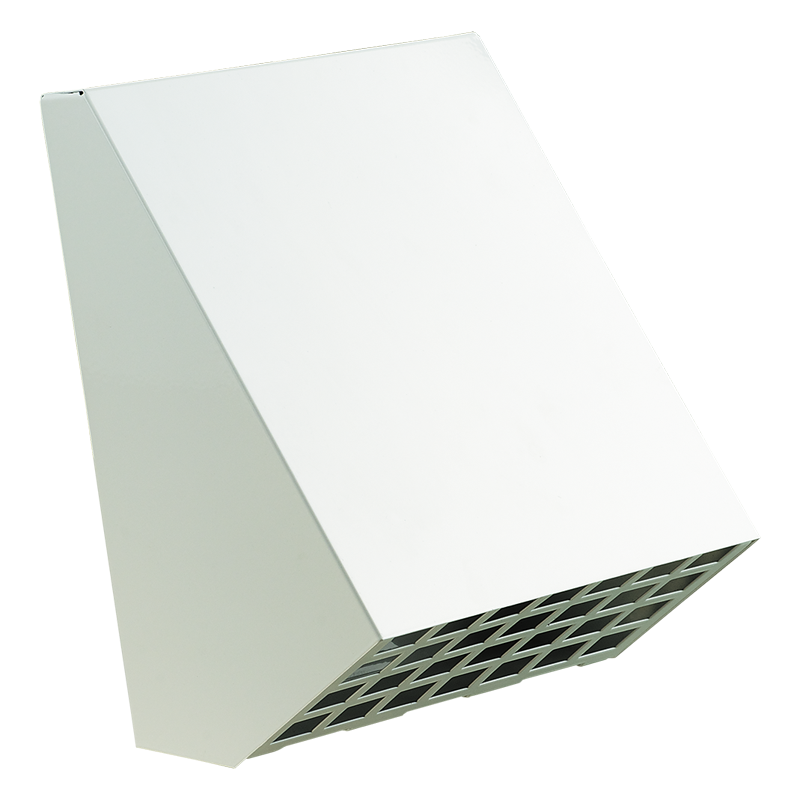

| Vents EH-13 white 160 |
|
Outer ventilation hood with frost protection |
| Name | Photo | Description |
|---|---|---|

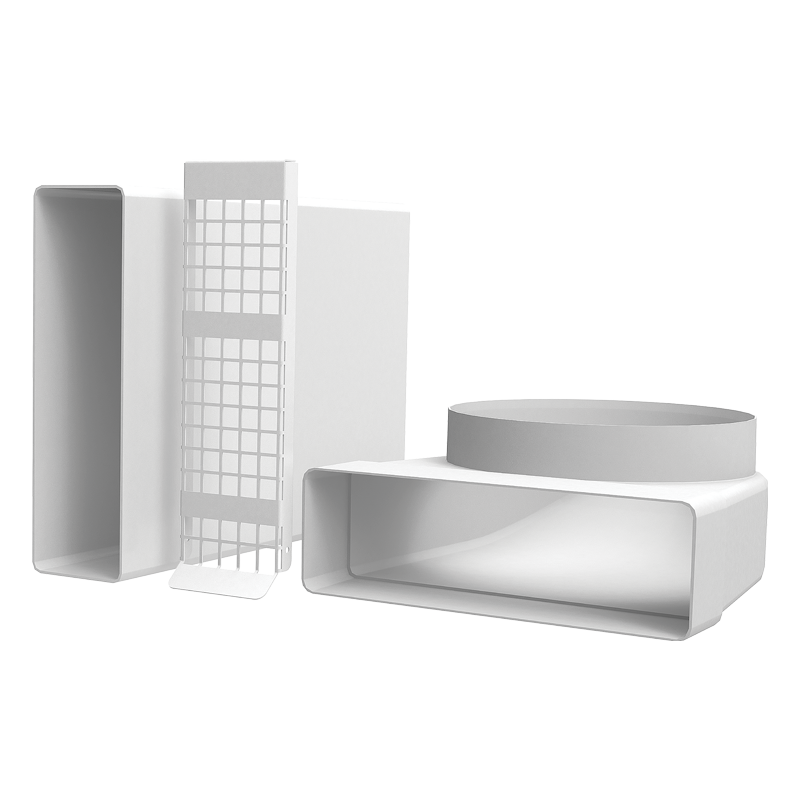

| Vents NP white 160 |
|
Mounting kit for corner mounting of the grille in the window opening |

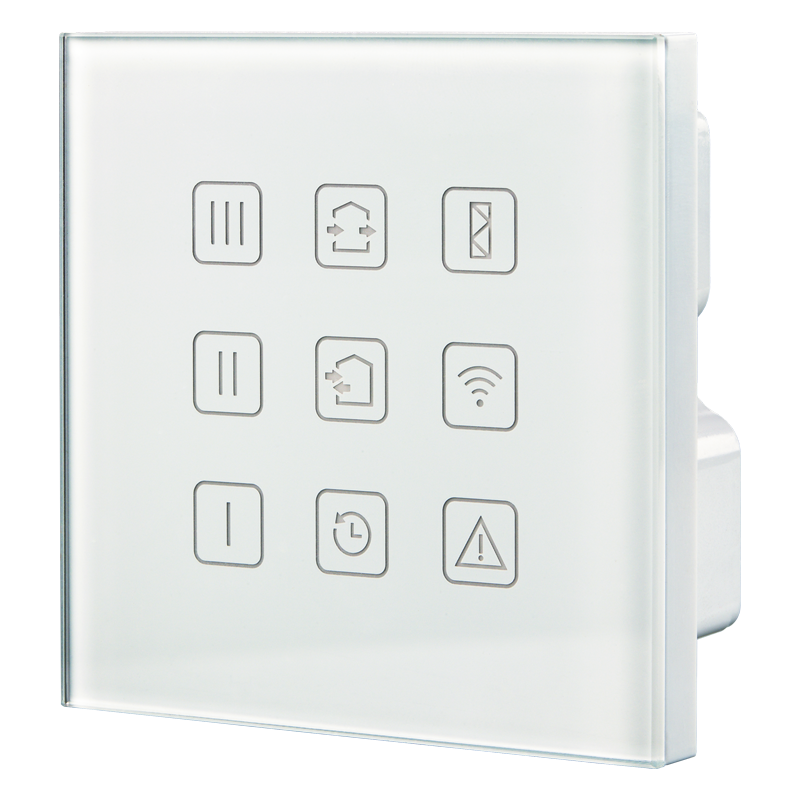

| Vents KV TwinFresh LuxAir RW |
|
Wi-Fi controlled control panel |

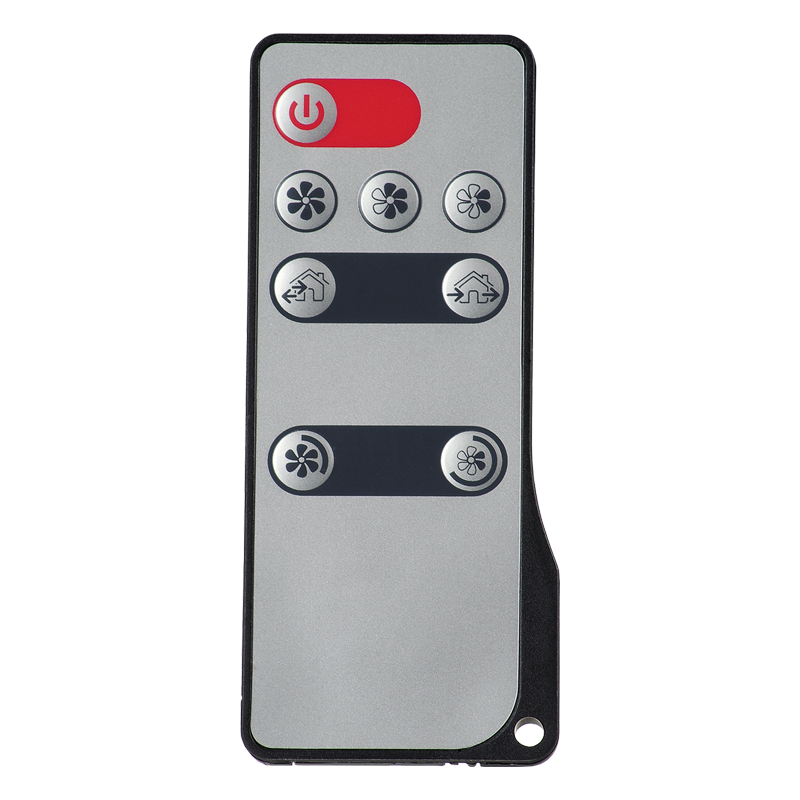

| Vents RC1 TwinFresh |
|
Remote control |

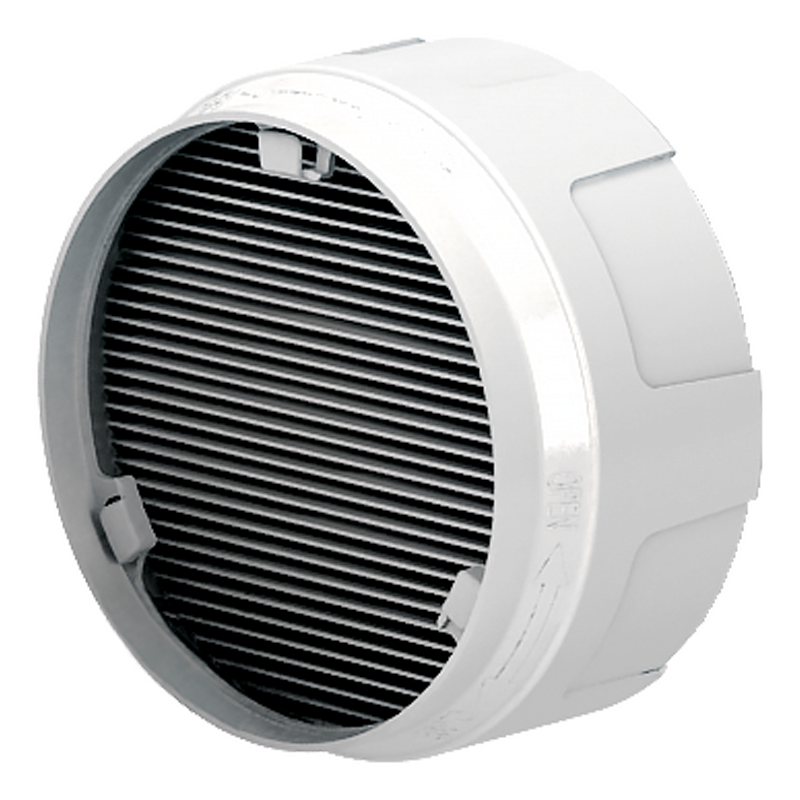

| Vents SF TwinFresh LuxAir R-50 F8 |
|
MERV 14 Filter (1 piece) |

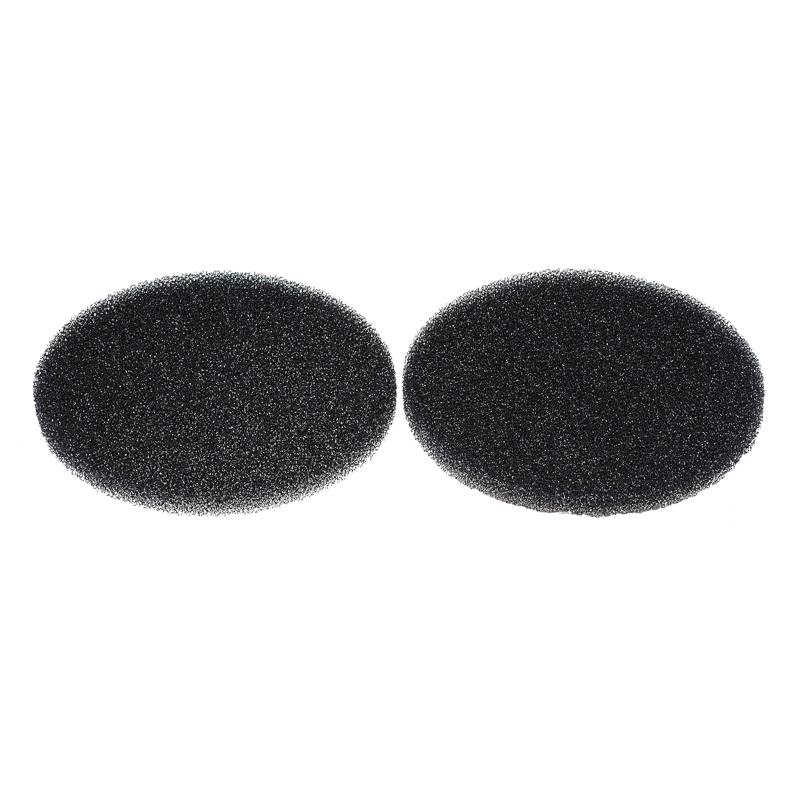

| Vents SF TwinFresh LuxAir R-50 G3 |
|
MERV 5 filter set (2 pcs.) |

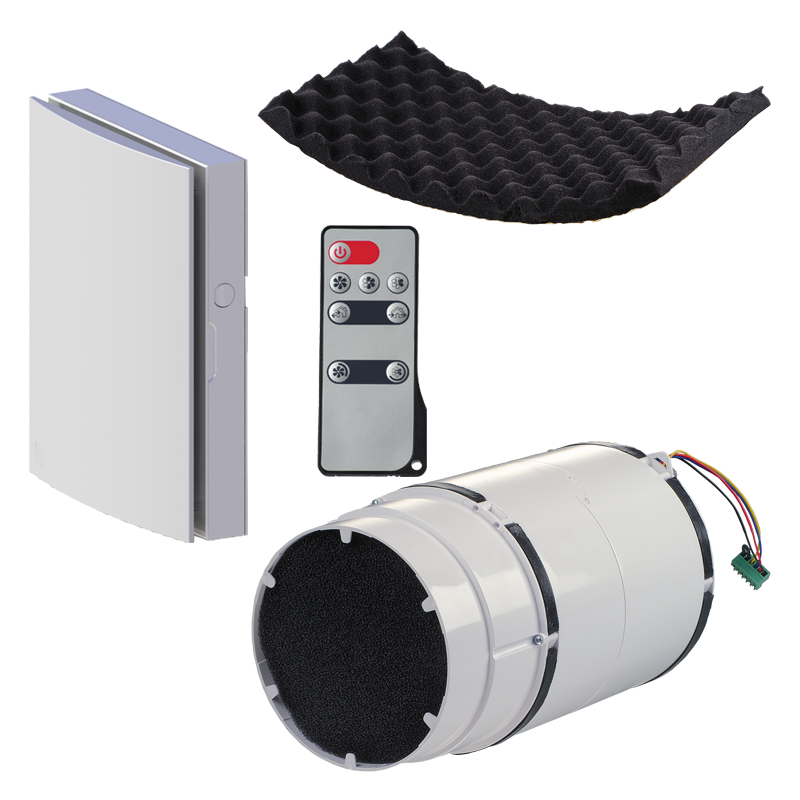

| Vents Completion kit TwinFresh LuxAir RW1-50 |
|
• indoor unit, • cartridge with regenerator, fan and two filters, • sound-insulating material, • remote control |

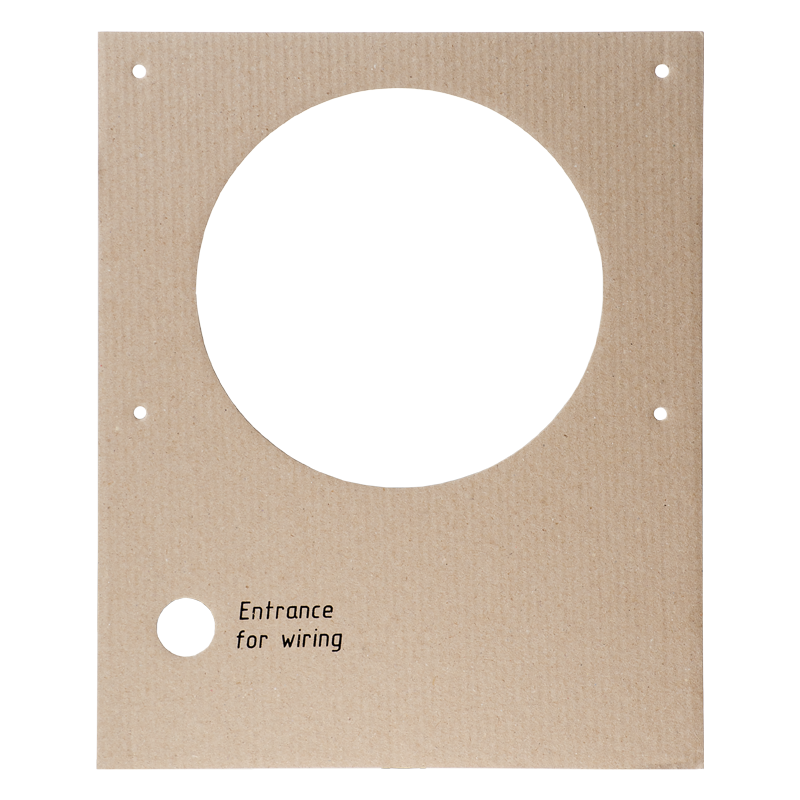

| Vents T TwinFresh LuxAir R-50 |
|
Cardboard template for indoor unit installation |
| Name | Photo | Description |
|---|---|---|
| Vents CO2-1 |
|
The sensor is designed for indoor carbon dioxide concentration measurement and respective air capacity regulation through the control output signal to the fan. Air capacity control based on CO2 concentration is an efficient energy saving solution |
| Vents CO2-2 |
|
The sensor is designed for indoor carbon dioxide concentration measurement and respective air capacity regulation through the control output signal to the fan. Air capacity control based on CO2 concentration is an efficient energy saving solution |
