Series Vents Brig ERV 200 R PR EC

Name: Vents Brig ERV 200 R PR EC
Brand: VENTS
Availability: InStock

Series Vents Brig ERV 200 R PR EC - Brig - Residential HRV / ERV

New

The complete whole house ventilation system designed to bring a continuous supply of fresh air into the house while exhausting an equal amount of stale air.

Heat exchanger type: Counter flow
Heat exchanger material: Enthalpy

Brig ERV 200 R PR EC are the complete whole house ventilation system designed to bring a continuous supply of fresh air into the house while exhausting an equal amount of stale air. Five year warranty.

CASING

Steel casing is covered with high-quality multilayer aluminium and zinc alloy to prevent corrosion. The casing is equipped with a switch to turn the ventilator off when the service panel is opened.

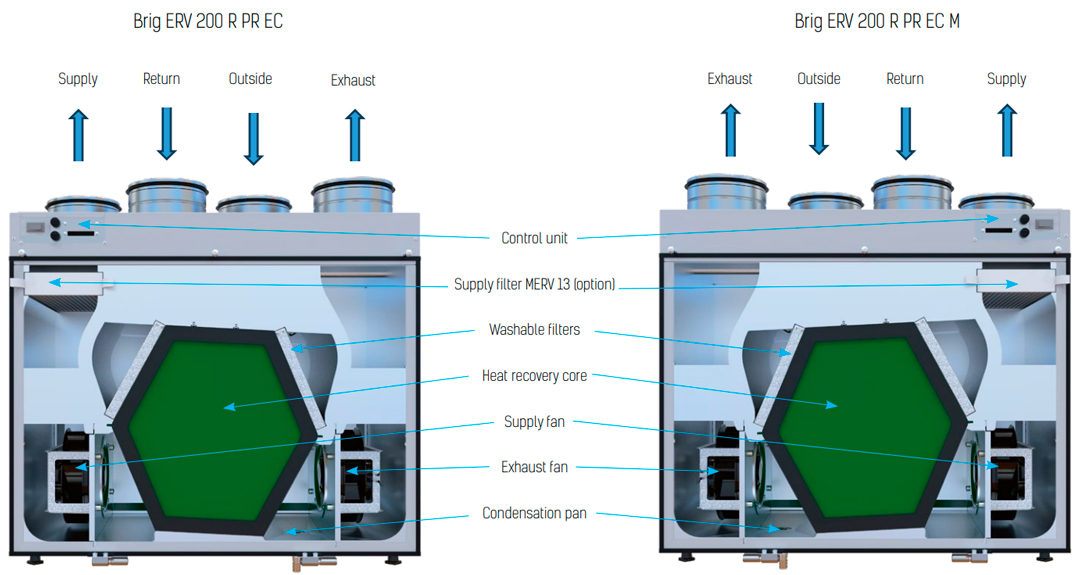

Brig ERV 200 R PR EC - left-handed version
Brig ERV 200 R PR EC M - right-handed version

AIR FILTRATION

Washable MERV 5 air filters in exhaust and supply air streams.

Optional: MERV 13 supply filter.

ENERGY RECOVERY CORE

Enthalpy counterflow heat exchanger provides both heat and humidity recovery.

FANS

Efficient electronically commutated motors with external rotor. EC motors are featured with high performance and total speed controllable range. The electric motors and impellers are dynamically balanced.

DEFROST SYSTEM

Recirculation.

MANUAL BALANCING

Manual balancing is a standard balancing system. Fan speed manually adjusted by operating on units controller (Built-in control panel with independent fan speed adjustment 0%-100%).

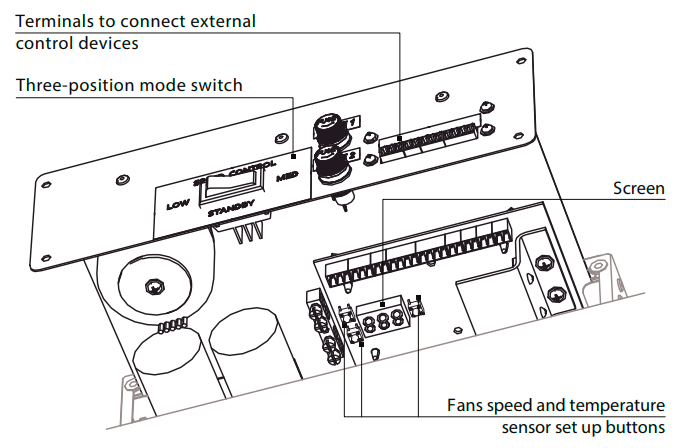

CONTROL SYSTEM

Integrated control system with following functions:

Operation mode switch.
Airflow balancing enabled by supply and exhaust fan independent speed adjustment from 0 to 100% (percentage is displayed on built in screen).
Automatic recovery core frost protection.
External control device connection (up to 5 at the same time).
