Series Vents Cutter HRV 150 PR EC

DESCRIPTION

• Cutter HRV 150 PR EC are the complete whole house ventilation system designed to bring a continuous supply of fresh air into the house while exhausting an equal amount of stale air. Five year warranty.

CASING

• Steel casing is covered with high-quality multilayer aluminium and zinc alloy to prevent corrosion. The casing is equipped with a switch to turn the ventilator off when the service panel is opened.

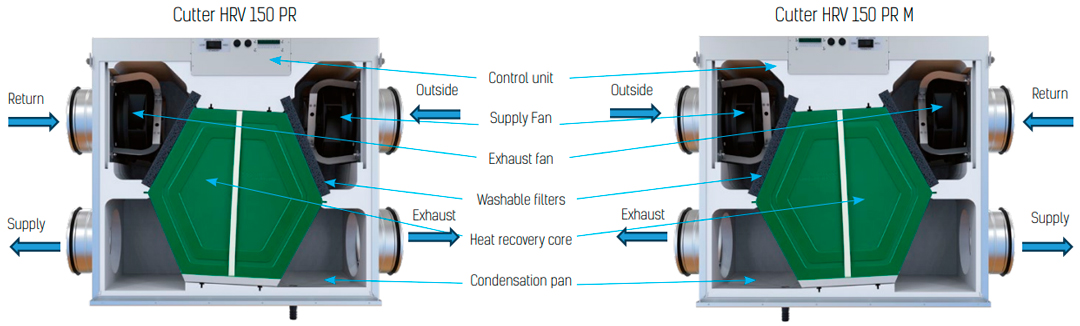

- Cutter HRV 150 PR EC - left-handed version
- Cutter HRV 150 PR EC M - right-handed version

AIR FILTRATION

• Washable MERV 5 air filters in exhaust and supply air streams.
• Optional: MERV 13 supply filter.

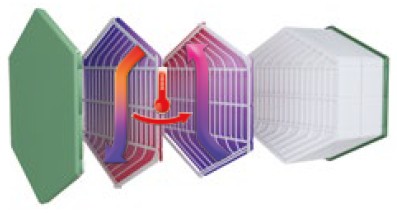

HEAT RECOVERY CORE

• Counterflow heat exchanger provides heat recovery.



FANS

• Efficient electronically commutated motors with external rotor. EC motors are featured with high performance and total speed controllable range. The electric motors and impellers are dynamically balanced.

DEFROST SYSTEM

• Supply fan stop.

MANUAL BALANCING

• Manual balancing is a standard balancing system. Fan speed manually adjusted by operating on units controller (Built-in control panel with independent fan speed adjustment 0%-100%).

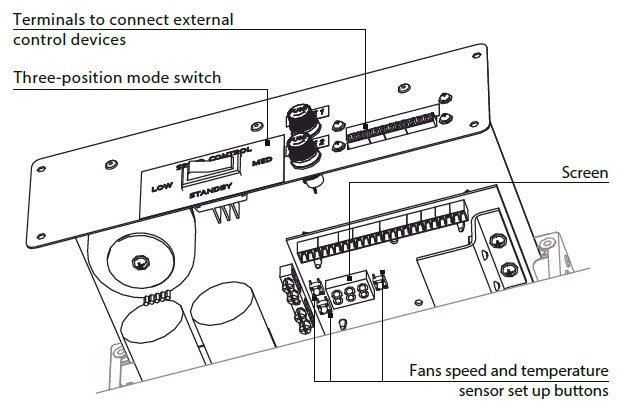

CONTROL SYSTEM

Integrated control system with following functions:

• Operation mode switch.
• Airflow balancing enabled by supply and exhaust fan independent speed adjustment from 0 to 100% (percentage is displayed on built in screen).
• Automatic recovery core frost protection.
• External control device connection (up to 5 at the same time).



SUITABLE FOR:

Bathroom / kitchen / apartments / cottages / small offices.
