Series Vents IRF-150

Name: Vents IRF-150
Brand: VENTS
Availability: InStock

Energy efficient inline reversible fan with built-in timer

MIXED FLOW REVERSIBLE FAN WITH BUILT-IN TIMER
SOLUTION FOR RESIDENTIAL VENTILATION

Why IRF 150 T ?

One fan providing ventilation for bathrooms, kitchen (when applicable), and ASHRAE fresh air requirements.
One duct replacing the bathrooms, kitchen (when applicable) and outside air ducts.
Penetrations to the exterior for bathrooms, kitchen (when applicable) & OSA will be reduced to only one.
The amount of Drop ceilings will be reduced due to eliminating ducts.
The amount of Lined joist bays will be reduced due to eliminating ducts.
Eliminates clearance requirements between outside air and bathrooms/kitchen (low rise).
Three-year warranty from time of installation.

Benefits

HIGH PERFORMANCE: up to 204 CFM
ENERGY EFFICIENT: 37.7 W
DUCT COMPATIBILITY: Ø 6”
ONE FAN FOR SUPPLY AND EXHAUST NEEDS
ONE DUCT TO DISCHARGE AND SUPPLY
MOTOR WITH THERMAL OVERLOAD PROTECTION
LONG-LIFE BALL BEARING (up to 40 000 hours)
BUILT IN AUTOMATIC CONTROL BOARD

BUILT-IN CYCLIC TIMER (FROM 0 TO 60 MIN)
LED ALARM INDICATION WITH AUDIO SIGNAL

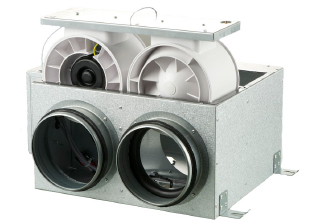

BUILT-IN SERVICE DOOR FOR EASY MAINTENANCE
COMPACT SIZE FOR LIMITED SPACES
VIBRATION FREE OPERATION
CORROSION FREE
EASY INSTALLATION
ETL / HVI / ENERGY STAR LISTED

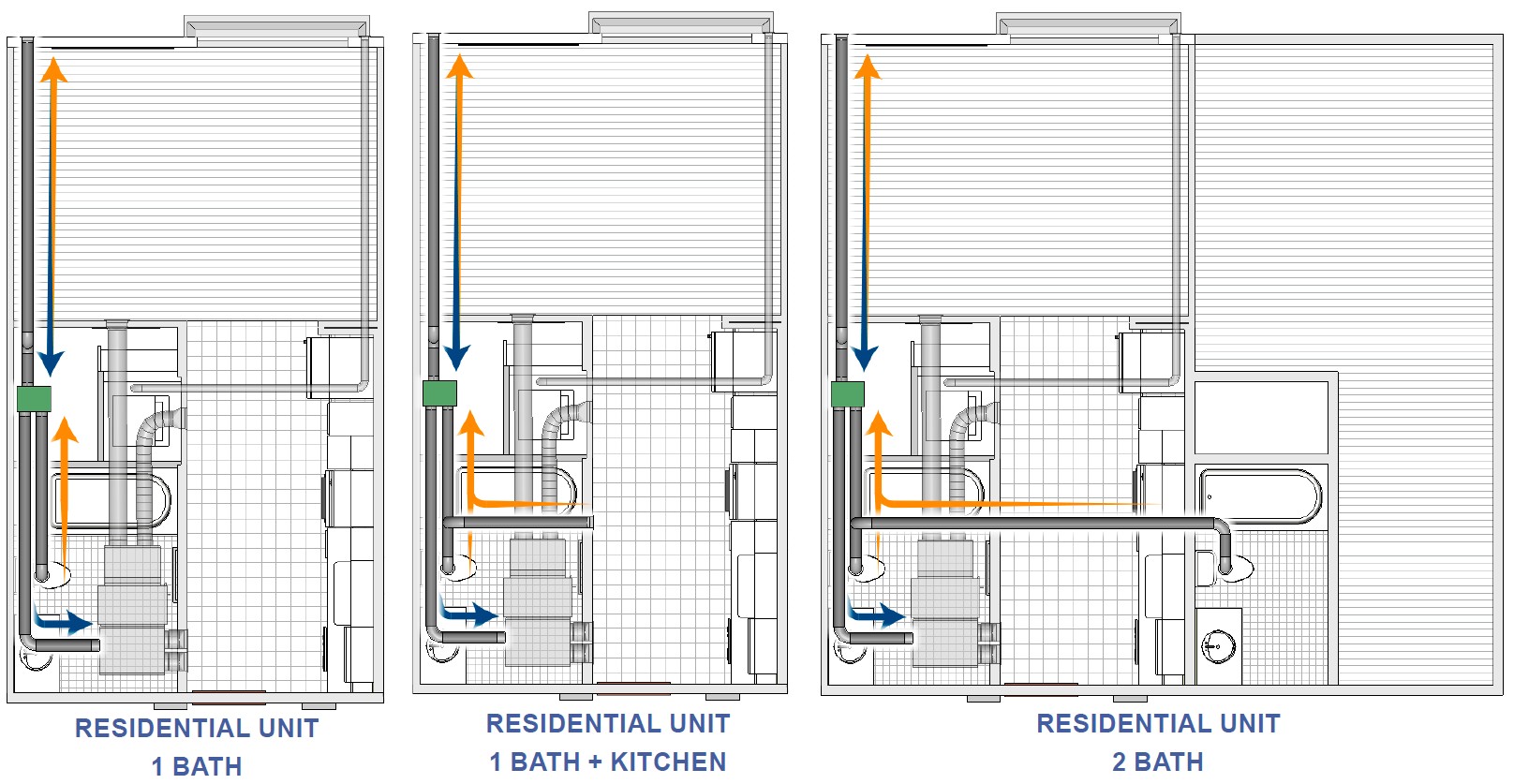

Application example

Innovative design

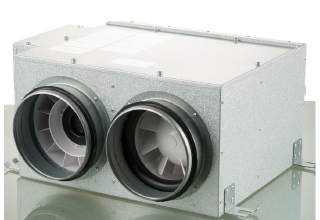

UNIQUE CONSTRUCTION
The combination of supply and exhaust, along with a low profile housing, makes this fan suitable for low ceilings and tight spaces.

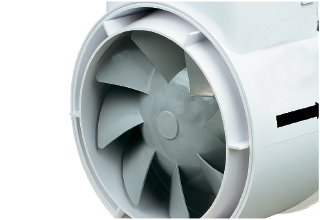

NEWLY DESIGNED IMPELLERS
Specifically designed impellers provide a powerful, yet smooth and quiet airflow.

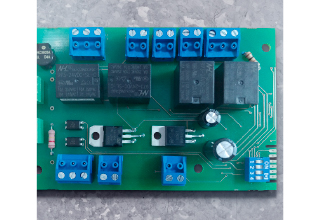

BUILT-IN CONTROLLER
Integrated controller provides automatic switching between supply and exhaust modes in accordance with code requirements. DIP switch of cyclic timer is located on the control board.
