/ Product catalogue / HRV / ERV / Single-room HRV / ERV / TwinFresh / TwinFresh Elite / TwinFresh Elite 160 Pro L1
| Unit of measurement | TwinFresh Elite 160 Pro L1 | |||
| Minimum supply voltage | V | 120 | ||
| Maximum supply voltage | V | 120 | ||
| Power supply frequency | Hz | 60 | ||
| Rated power | W | 5 | 11 | 22 |
| Power of electrical preheater | W | 100 | ||
| Maximum unit current | A | 0.9 | 0.95 | 1.05 |
| Maximum performance @0.1" | CFM | 9 | 21 | 33 (41 in Boost mode) |
| Heat recovery efficiency | % | |||
| Heat recovery efficiency, max | % | 88 | ||
| Heat exchanger material | - | Copper | ||

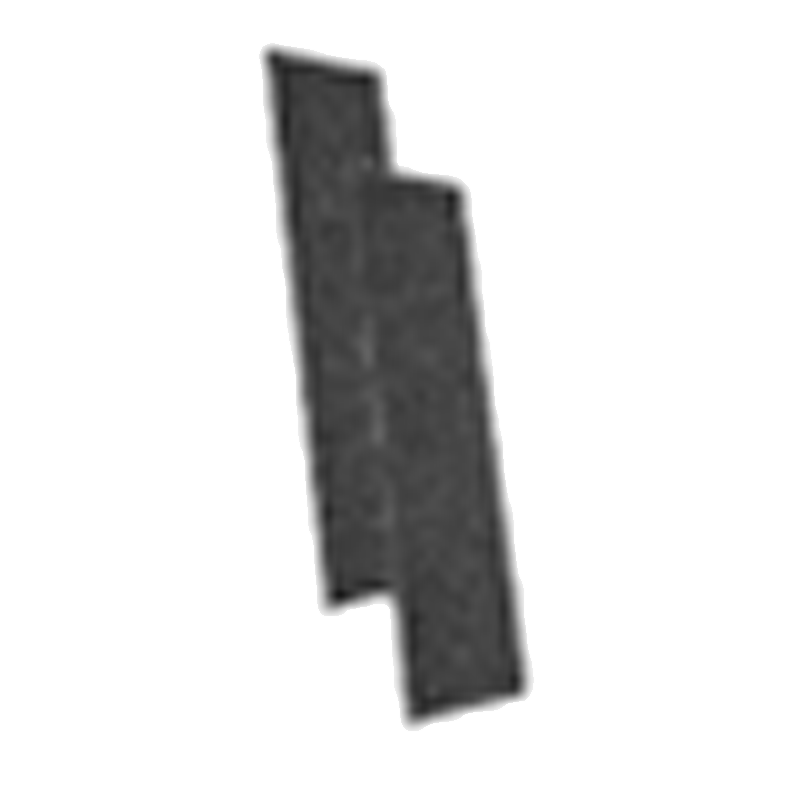

| Filter | - | MERV 5 | ||
| Ingress protection rating | - | IPX4 | ||
| Sound pressure level LpA at 3 ft | Sones | 0.4 | 3.2 | 5.6 |
| Sound pressure level LpA at 10 ft | Sones | 0.3 | 1.5 | 2.9 |
| ØD | L | L1 |
|---|---|---|
| 6 3/8'' (162 mm) | 43 5/16'' (1100 mm) | 39 3/8'' (1000 mm) |
