Series Vents TwinFresh Elite

HRV unit for single-room ventilation
  • Filter: MERV 5
  • Motor type: EC
  • Preheater: Electric
  • Control: Remote Control
  • Casing material: Plastic
  • Humidity sensor
TwinFresh Elite heat recovery unit is a modern solution that combines balanced ventilation with heat recovery, a built-in electric heater,
temperature and air quality sensors, as well as a user-friendly interface. With its compact design and multi-functionality, the device provides an effective way to improve indoor air quality while reducing energy consumption.
FEATURES
  • Simultaneously supplies and exhausts air through a single hole in the outer wall.
  • Separate settings for each EC fan ensure balanced ventilation.
  • Reducing heat losses caused by ventilation due to heat recovery.
  • Efficient copper heat exchanger with automatic frost protection system.
  • Electric heater.
  • MERV5 supply and exhaust filters.
  • 4 temperature sensors.
  • Humidity sensor.
  • Optional CO2 and air quality sensor.

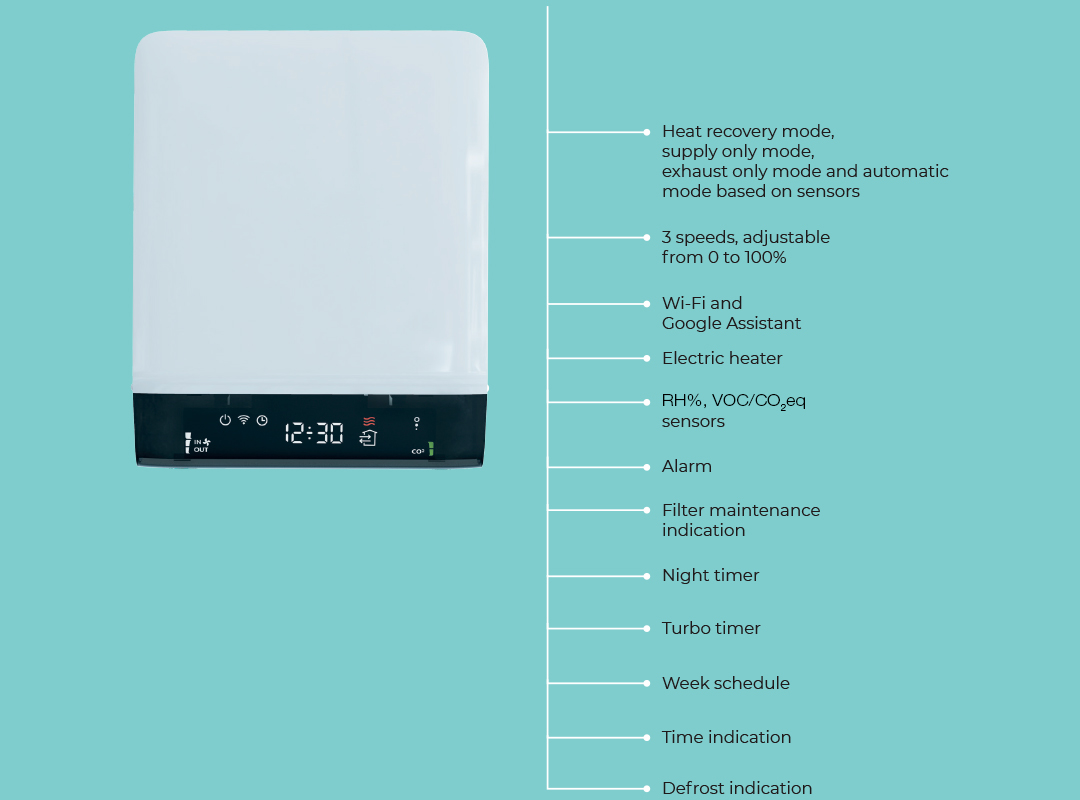

FUNCTIONS


MODE OF OPERATION
  • Heat recovery mode - simultaneously supplies and removes air through one opening in the outer wall. The heater and defrosting algorithm are activated by temperature sensors.
  • Supply mode – active operation of the supply fan only. Electric heater activation is available.
  • Exhaust mode – active operation of the exhaust fan only. Activation of the electric heater is not available.
CONSTRUCTION


COPPER HEAT EXCHANGER


Advantages:

  • the use of high-quality refined copper guarantees significant indicators of thermal conductivity, tightness and antiseptic properties;
  • patented technology and know-how presented by wavy ribs significantly increase the contact surface for maximum efficiency;
  • modern automated recuperator production line ensures stable quality;
  • the design of the recuperator has low air resistance, so the fans consume less electricity and create less noise.
ALL FUNCTIONS IN YOUR SMARTPHONE

TwinFresh Elite – combines compact dimensions and a variety of built-in sensors (temperature, humidity, CO2 and air quality), parameters that are easy to monitor in a smartphone application.

AND EVEN MORE.

Just say «Hello Google» and test, control and run TwinFresh Elite in English, German, Swedish, Norwegian, Danish, Polish, Dutch, French, Spanish*.


*Important: The feature availability could depend on your country, region and language. Check it for your speaker/smartphone or ask its manufacturer.
